Specialized ceramic-grade alumina (alpha-phase) requires purity exceeding 99.99%, significantly surpassing the 99.5% standard found in industrial aluminum smelting. Producers achieve this by transitioning from standard Bayer-processed hydroxide to refined chemical precipitation or alkoxide hydrolysis. These methods reduce trace contaminants like sodium and iron to under 10 parts-per-million. Thermal conversion involves precise calcination at 1,100°C to 1,500°C to ensure stable crystalline lattice formation. Researchers verify phase purity using X-ray diffraction on 100% of production batches. This consistency ensures high dielectric strength and mechanical toughness for components used in aerospace, semiconductor manufacturing, and high-voltage medical implants.

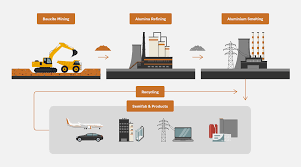

The standard Bayer process begins by digesting ground bauxite in caustic soda at 140°C to 240°C. This cycle yields crude aluminum hydroxide, which serves as the feedstock for various industrial applications.
Once this crude hydroxide is isolated, the path to specialized material diverges, as how is alumina made for high-end ceramics necessitates much stricter chemical controls. Standard metallurgical-grade material often retains 0.3% to 0.5% sodium, which disrupts the sintering process.
To eliminate these sodium levels, synthetic pathways such as the alkoxide hydrolysis route are utilized instead of traditional refinery methods. This chemical approach yields alumina with purity levels exceeding 99.995%, creating a highly reactive and uniform precursor powder.
Precursor powders produced via chemical synthesis often exhibit non-agglomerated particles with surface areas between 5 and 15 square meters per gram. This specific surface area is a critical factor for controlling the subsequent shrinkage rates during high-temperature ceramic firing.
High-temperature firing, or calcination, transforms these precursors into the stable alpha-phase, or corundum, which is the necessary structural state for advanced ceramics. Furnace temperatures are held rigidly between 1,200°C and 1,500°C for 2 to 6 hours to facilitate this phase evolution.
The kinetics of this calcination process dictate the final crystal morphology, as the alpha phase nucleates from the transition phases at temperatures typically starting around 1,050°C. Longer residence times at peak temperature result in larger grain sizes, which negatively impacts the mechanical strength of the final sintered component.
| Property Type | Typical Requirement |
| Alumina Content | > 99.99% |
| Sodium Content ($Na_2O$) | < 50 ppm |
| Particle Size ($D_{50}$) | 0.25 – 0.45 $\mu$m |
| Specific Surface Area | 8 – 12 $m^2/g$ |
Upon cooling, the calcined powder is usually too coarse for immediate forming and requires mechanical size reduction. Engineers utilize high-energy ball milling or jet milling to break down agglomerates into sub-micron dimensions.
The particle size distribution ($D_{50}$) is typically refined to the 0.3 to 0.5 micrometer range to ensure high packing density during the dry-pressing or slip-casting stages. This fine-tuning of the powder distribution ensures that the ceramic body achieves its maximum theoretical density during final sintering.
Microstructural uniformity is often compromised by uneven grain growth if the raw powder remains untreated before the sintering stage. Magnesium oxide dopants are frequently introduced at levels of 0.05% to 0.1% to pin grain boundaries and prevent this undesirable growth.
Validating the consistency of these powders requires rigorous laboratory testing protocols on every production lot. Quality control teams inspect sample sizes of at least 50 kilograms to ensure chemical homogeneity across the entire batch.
Scanning Electron Microscopy (SEM) provides visual confirmation of particle morphology across 100 random samples, verifying that the milling process successfully eliminated all remaining coarse particles. This microscopic inspection is essential for ensuring that no large inclusions exist to act as structural failure points.
The final sintered ceramic achieves a theoretical density of approximately 3.98 grams per cubic centimeter, providing the necessary hardness for demanding mechanical environments. This density is accompanied by a stable dielectric constant, typically ranging from 9.5 to 10.0 across frequencies up to 10 GHz.
